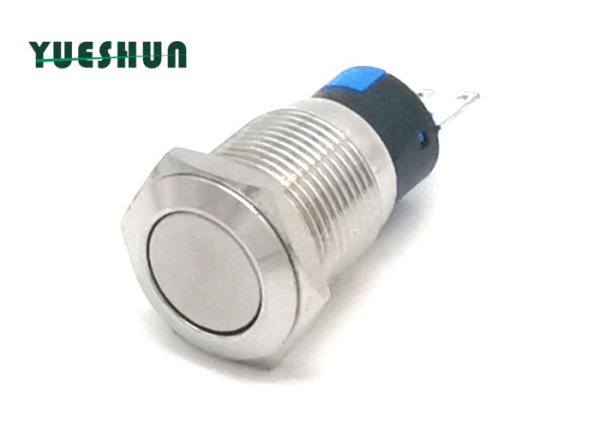

    16mm Anti Vandal Push Button Switch Round Head 3 Pin Terminal Door Bell

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : LA16F-11/S
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    16mm Anti Vandal Push Button Switch Round Head 3 Pin Terminal Door Bell

    16mm Latching or Momenntary Anti Vandal Push Button Switch round head pin Termlmal door bell push button


    Product Description

    - Anti-vandal and security push button switches are attractive, robust and durable. It is an extra tough, stainless steel pushbutton which is applicable for security systems, Kiosks, Process control, Public access equipment, Gas pumps, Outdoor machinery and industrial machinery.
    - There are many materials for your choice. Stainless steel is made to withstand rough use and the Brass is made to mirror effort. Zn-Al Alloy suppliy you whatever color you need.
    - Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched;

    - Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).


    Product Specification

    Model NumberLA16F-11/S
    Mounting Hole16mm
    Max.Switch RatingIth : 5A Ui : 250V AC
    MaterialBody Material: Stainless Steel
    Button Material: Stainless Steel
    Contact Material: Silver Alloy
    Base Material: PBT
    The Front ShapeFlat Round Head
    Terminal TypePin Termlmal ( 2.5 * 0.5 mm )
    Switch OperationMomentary or Latching are available
    Contact Configuration1NO + 1NC or 2NO + 2NC are available
    Mounting panel thickness1-10 mm
    Operation DistanceAbout 2.8 mm
    Protection LevelIP67
    Operating Temp-20℃~+55℃

    Size
