    10A 250V AC 316 Stainless Steel Push Button Switch Anti Vandal Protected Against Dust

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : LA19F-11E/S A
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    10A 250V AC 316 Stainless Steel Push Button Switch Anti Vandal Protected Against Dust

    19mm 10A 250V AC Momentary Anti Vandal Push Button Switch Illuminated 316 Stainless Steel push button


    Product Description

    - This is a Anti Vandal Push Button Switch,Can carry up to 10 A of current.

    - Waterproof pushbutton switches is made of 316 stainless steel,other anti-vandal metal such as Gold plated brass , Zn-Al Alloy, Nickel Plated Brass 304 stainless steel available .
    - Widely Used In Communication Device, Networking, Automatic, the push button has good press performance and easy to assemble. There are screws or soldring terminals for your choice. We also supply harness tail for easy assemble acoording to your requirements.
    - Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off);

    - Momentary button: Press the power on, release the hand power on of off, the button spring to original position.


    Product Specification

    Model NumberLA19F-11E/S 316
    Mounting Hole19mm
    Max.Switch RatingIth : 10A Ui : 250V AC
    MaterialBody Material : 316 Stainless Steel
    Button Material :316 Stainless Steel
    Contact Material : Silver Alloy
    Base Material : PBT
    The Front ShapeFlat Round Head
    Terminal Type4 Pin Termlmal( 2.8 * 0.5 MM )
    Switch OperationMomentary or Latching are available
    Contact Configuration1NO + 1NC or 2NO + 2NC
    Mounting panel thickness1-10 mm
    Operation DistanceAbout 0.5 mm
    LED ParametersLed Type : Ring Symbol
    LED Color :
    Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
    Led Voltage:
    3V 6V 12V 24V 36V 110V 220V 360V for choose.
    LED Life : More than 40,000 hours
    Protection LevelIP67
    Operating Temp

    -20℃~+55℃

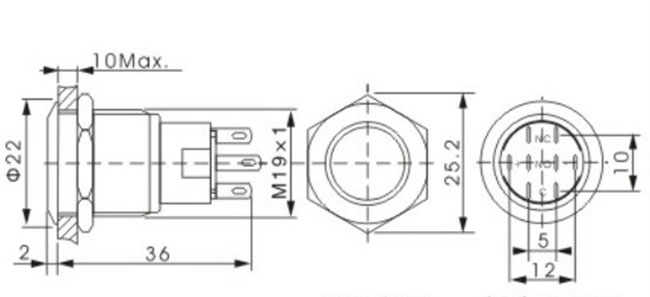

    Size
