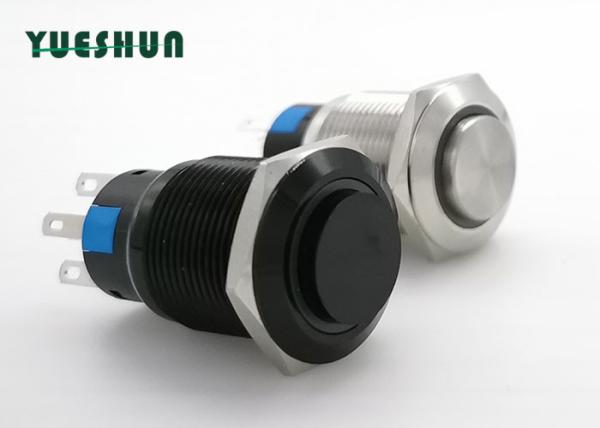

Metal 19mm Push Button Switch , Automotive Push Button Switches High Head

    Buy cheap Metal 19mm Push Button Switch , Automotive Push Button Switches High Head from wholesalers

    Buy cheap Metal 19mm Push Button Switch , Automotive Push Button Switches High Head from wholesalers
    • Buy cheap Metal 19mm Push Button Switch , Automotive Push Button Switches High Head from wholesalers

    Metal 19mm Push Button Switch , Automotive Push Button Switches High Head

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : LA19H-11E
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Metal 19mm Push Button Switch , Automotive Push Button Switches High Head

    Ring LED light Metal 19mm Push Button Switch High head automotive push button switch


    Product Description


    - A latch, essentially, "latches on" and does not turn off until the power is completely removed from it. Pressing the button which triggers a latch has no effect to turn it off.

    - We have product catalog.Please contact us on line or send an Email for sending the catalog.


    Product Specification


    Model Number

    LA19H-11E

    Mounting Hole

    19mm

    Max.Switch Rating

    Ith : 5A Ui : 250V AC

    Material

    Body Material: Stainless Steel / Aluminum

    Button Material:Stainless Steel / Aluminum

    Contact Material: Silver alloy

    Base Material: PBT

    The Front Shape

    High Round Head

    Terminal Type

    Pin Termlmal

    Switch Operation

    Momentary or Latching

    Contact Configuration

    1NO 1NC OR 2NO 2NC

    Mounting panel thickness

    1-10 mm

    Operation Distance

    About 3.1 mm

    LED Parameters

    Led Type: Ring Symbol

    LED Color:
    Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

    Led Voltage:
    3V 6V 12V 24V 36V 110V 220V 360V for choose.

    LED Life: More than 40,000 hours

    Protection Level

    IP67

    Operating Temp

    -20℃~+55℃
