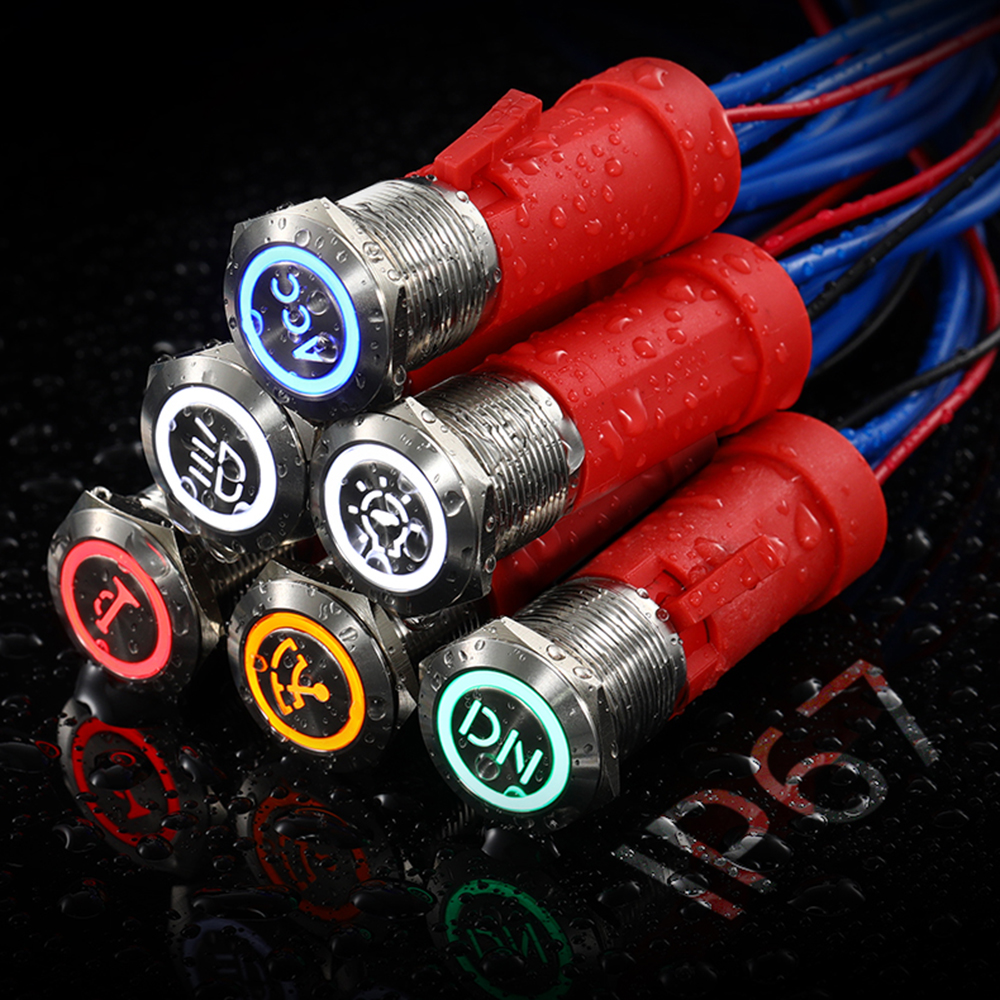

Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine

    Buy cheap Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine from wholesalers

    Buy cheap Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine from wholesalers
    • Buy cheap Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine from wholesalers
    • Buy cheap Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine from wholesalers

    Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : JS16F-10E
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine

    High Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine


    Product Fatures

    - 20A/250Vac dc push button switch,can be used in many device such as PC, Car, Boat, Elevator, Bank machine, etc..

    - Its Shell Metarial is 316 Stainless Steel.Our factory can produce customized products according to customers' needs.
    - stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.

    - Protection Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment.


    Product Specification


    Model Number

    LA19D-10E/S

    Mounting Hole

    19mm

    Max.Switch Rating

    Ith : 20A Ui : 25VAC DC

    Material

    Body Material: Stainless Steel

    Button Material: Stainless Steel

    Contact Material: Silver Alloy

    Base Material: PBT

    The Front Shape

    High Round Head

    Terminal Type

    Pin Termlmal

    Switch Operation

    Momentary

    Contact Configuration

    1NO

    Mounting Panel Thickness

    1-10 mm

    Operation Distance

    About 2.5 mm

    LED Parameters

    Led Type: Ring Type

    LED Color:
    Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

    Led Voltage:

    3V 6V 12V 24V are available.

    LED Life: More than 40,000 hours

    Protection Level

    IP67

    Operating Temp

    -20℃~+55℃


    Size

    ABOUT US


    We are a professional engaged in metal button switch, indicator lights and accessories r & d/production/sales of high-tech enterprises, enterprises through iso9001:2015 quality management system certification and intellectual property management system certification, products through a variety of safety certification, for the electronic industry to provide nearly a thousand different specifications of electrical switch products.Products used in the automotive industry/electric vehicle industry/medical testing equipment/automation equipment/communication equipment/household appliances/instrumentation/fitness and beauty equipment/aviation/national defense/transportation and other fields.
    Through manufacturing process transformation and technological innovation, the company has rapidly become a technology-based technology enterprise in the electrical switch industry. The company has an independent r&d center for electrical switches.
    Fine management of mold production center and product manufacturing park.
